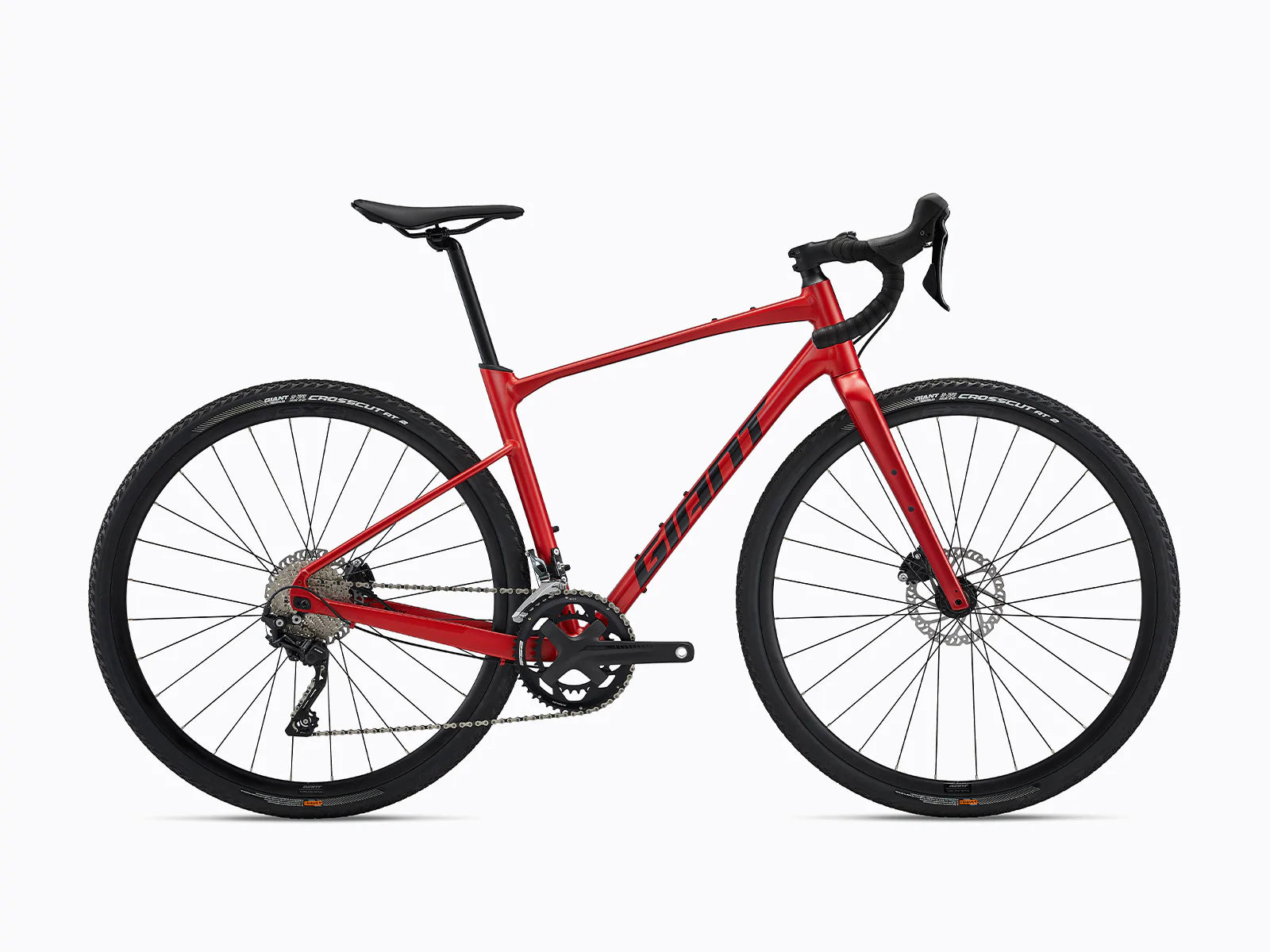

Ride roads, gravel or dirt with this all-new aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.
Size | cm feet |
---|---|
XS |
155-166
5'1"-5'5"
|
S |
159-171
5'3"-5'7"
|
M |
169-181
5'7"-5'11"
|
ML |
174-186
5'9"-6'1"
|
L |
179-191
5'10"-6'3"
|
XL |
189-200
6'2"-6'7"
|
XS | S | M | ML | L | XL | |
---|---|---|---|---|---|---|
Seat Tube Length | XS430 | S450 | M470 | ML490 | L510 | XL530 |
Seat Tube Angle | XS74 | S73.5 | M73.5 | ML73 | L73 | XL73 |
Top Tube Length | XS540 | S550 | M560 | ML575 | L585 | XL600 |
Head Tube Length | XS125 | S135 | M150 | ML165 | L180 | XL195 |
Head Tube Angle | XS70 | S71 | M71.5 | ML72 | L72 | XL72 |
Fork Rake (mm) | XS50 | S50 | M50 | ML50 | L50 | XL50 |
Trail | XS78 | S72 | M68 | ML65 | L65 | XL65 |
Wheelbase | XS1029 | S1025 | M1030 | ML1035 | L1045 | XL1061 |
Chain Stay Length | XS430 | S430 | M430 | ML430 | L430 | XL430 |
Bottom Bracket Drop | XS80 | S80 | M80 | ML80 | L80 | XL80 |
Stack | XS556 | S570 | M586 | ML602 | L616 | XL630 |
Reach | XS381 | S381 | M387 | ML391 | L397 | XL407 |
Stand Over Height | XS717 | S734 | M752 | ML769 | L786 | XL801 |
Stem Length | XS70 | S80 | M90 | ML100 | L100 | XL110 |
Crank Length | XS170 | S170 | M172.5 | ML172.5 | L175 | XL175 |
Wheel Size | XS700x 42C | S50C700x 42C | M50C700x 42C | ML50C700x 42C | L50C700x 42C | XL50C700x 42C |
Size | XS, S, M, M/L, L, XL |
Colours | Grenadine, Deep Lake |
Frame | ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout |
Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
Shock | N/A |
Handlebar | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
Seatpost | Giant D-Fuse, alloy, 14mm offset |
Saddle | Giant Approach |
Pedals | N/A |
Shifters | Shimano GRX RX-400, 2x10 |
Front Derailleur | Shimano Tiagra |
Rear Derailleur | Shimano GRX RX-400 |
Brakes | Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
Brake Levers | Shimano GRX RX-400 hydraulic |
Cassette | Shimano HG500, 11x34 |
Chain | KMC X10 |
Crankset | FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
Bottom Bracket | FSA Mega EXA, press fit |
Rims | Giant S-X2 Disc wheelset |
Hubs | Giant S-X2 Disc wheelset |
Spokes | Giant S-X2 Disc wheelset |
Tires | Giant CrossCut AT 2, 700x38c, tubeless |
Extras | Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position |
Weight | The most accurate way to determine any bike's weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
