Highlights

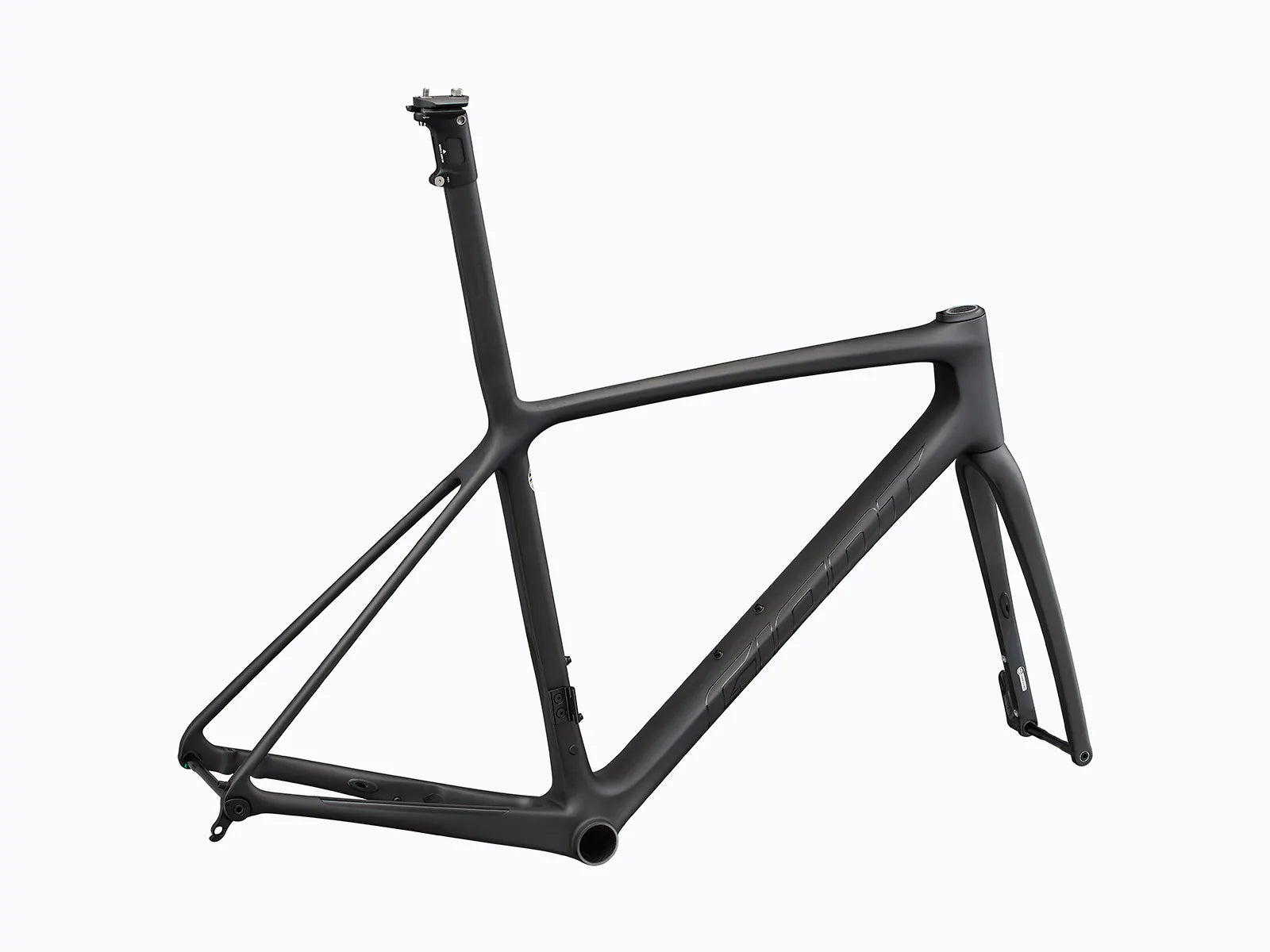

TCR Advanced SL Disc-FF A
Sizing guide
| Size | cm feet |
|---|---|
| XS |
157-169
5'2"-5'7"
|
| S |
165-175
5'5"-5'9"
|
| M |
171-181
5'7"-5'11"
|
| ML |
177-187
5'10"-6'2"
|
| L |
183-193
6'0"-6'4"
|
| XL |
189–199
6’2”–6’6”
|
Geometry
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| Seat Tube Length | XS425 | S710 | M740 | ML770 | L800 | XL830 |
| Seat Tube Angle | XS74.5° | S74° | M73.5 | ML73 | L73° | XL72.5° |
| Top Tube Length | XS520 | S535 | M550 | ML565 | L580 | XL600 |
| Head Tube Length | XS120 | S130 | M145 | ML165 | L185 | XL200 |
| Head Tube Angle | XS71 | S72.25 | M73 | ML73 | L73 | XL73 |
| Fork Rake (mm) | XS45 | S45 | M45 | ML45 | L45 | XL45 |
| Trail | XS72 | S64 | M59.2 | ML59.2 | L59.2 | XL59 |
| Wheelbase | XS976 | S977 | M980 | ML991 | L1,006 | XL1,020 |
| Chain Stay Length | XS405 | S405 | M405 | ML405 | L405 | XL405 |
| Bottom Bracket Drop | XS72 | S70 | M70 | ML67 | L67 | XL67 |
| Stack | XS517 | S528 | M545 | ML562 | L581 | XL596 |
| Reach | XS376 | S383 | M388 | ML393 | L402 | XL412 |
| Stand Over Height | XS706 | S725 | M747 | ML773 | L800 | XL816 |
| Stem Length | XS80 | S90 | M100 | ML110 | L110 | XL120 |
| Crank Length | XS170 | S170 | M172.5 | ML172.5 | L175 | XL175 |
| Wheel Size | XS700C | S700C | M700C | ML700C | L700C | XL700C |
Technical specifications
| Size | S, M, M/L, L, XL |
| Colours | Raw Carbon |
| Frame | Advanced SL-Grade Composite, integrated seatpost, disc |
| Fork | Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc |
| Shock | N/A |
| Handlebar | N/A |
| Stem | N/A |
| Seatpost | Advanced SL-Grade composite, integrated design, -5/+15mm offset |
| Saddle | N/A |
| Pedals | N/A |
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Brakes | N/A |
| Brake Levers | N/A |
| Rims | N/A |
| Hubs | N/A |
| Spokes | N/A |
| Tires | N/A |
| Extras | Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps, RideSense ANT+/Bluetooth |
| Weight | The most accurate way to determine any bike's weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
